Inhouse product

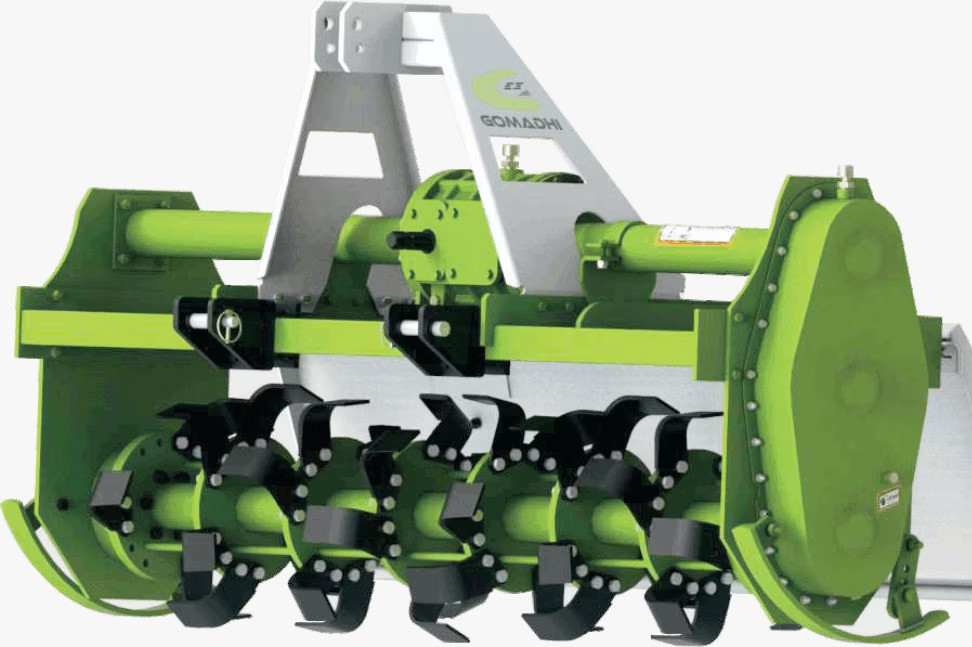

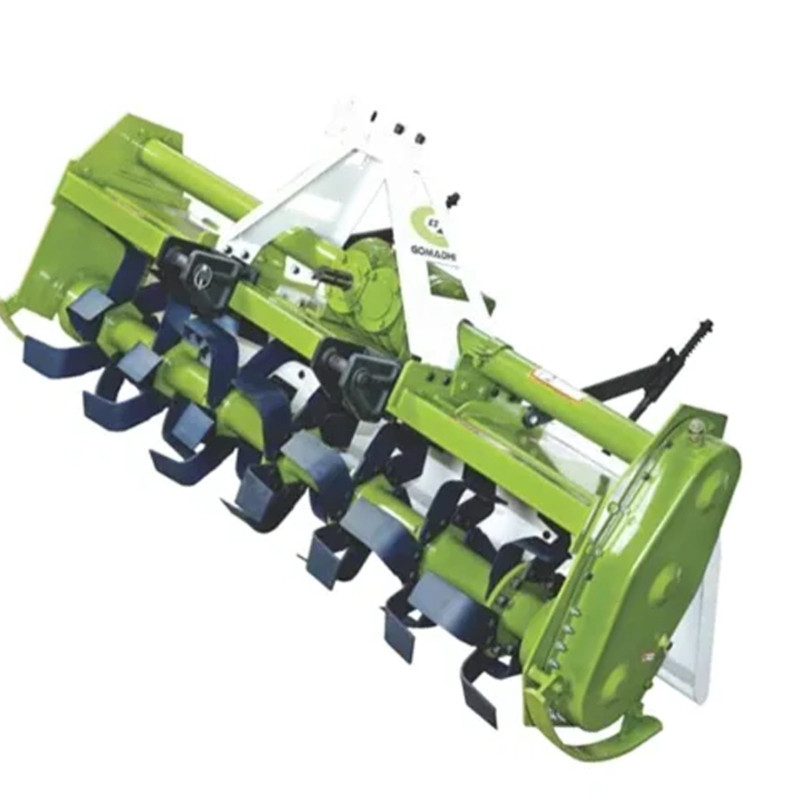

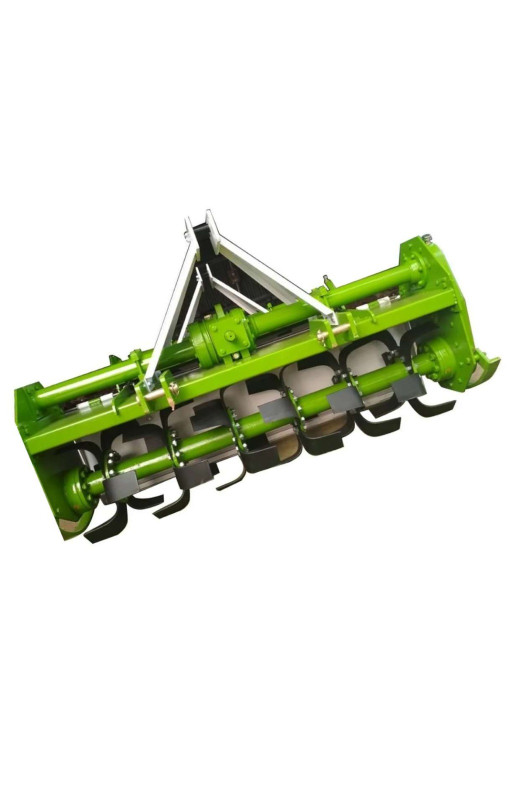

The Gomadhi Rotavator – 36 Gear is a high-performance agricultural implement designed for efficient and reliable soil preparation. Equipped with a 36-gear drive transmission system, this rotavator ensures smooth and direct power transfer from the tractor PTO, resulting in consistent rotor speed and excellent tillage quality.
Built with a strong gearbox and heavy-duty frame, the Gomadhi 36 Gear Rotavator effectively pulverizes soil, incorporates crop residues, and prepares a fine seedbed in fewer passes. Its precision-engineered blades deliver uniform cutting depth, improved soil aeration, and enhanced moisture retention.
Suitable for both dry and wet land operations, this rotavator is ideal for farmers seeking durability, low maintenance, and high productivity. The gear-driven mechanism reduces power loss and increases working efficiency, making it perfect for long hours of field operation.
Note:
1. Customers can easily get original spare parts from our branches, as commonly needed parts are always in stock.
2. Customers can get warranty service at any of our branches during the warranty period.
| Top Highlights | |
|---|---|
| Model | GES40MSG |
| Type | Tractor PTO Operated Rotary Tiller |
| Dimension in mm/feet (L X W X H) | 1756X780X1090mm / 5.8x2.5x3.5ft |
| Working Width | 1500mm / 4.9ft |
| Tractor Power | 40-50 Hp |
| No.of flanges | 6 |
| No. of blade | 36 |
| PTO input speed | 540/1000RPM |
| Side Transmission Drive | Gear |
| rotor shaft speed | 227/256RPM |
| Size of Blades | 84x7mm |
| Max.Working Depth | 100-125mm |
| rotor tube dia | 90mm |
| rotar swing dia | 45mm |
| Hitching | CAT-II 3 Point Linkage |
| Type of Blade | L- Type |
| Weight | 402 Kgs |
| Acres | 1.4 - 5 |
| Crop | All types of crops |
